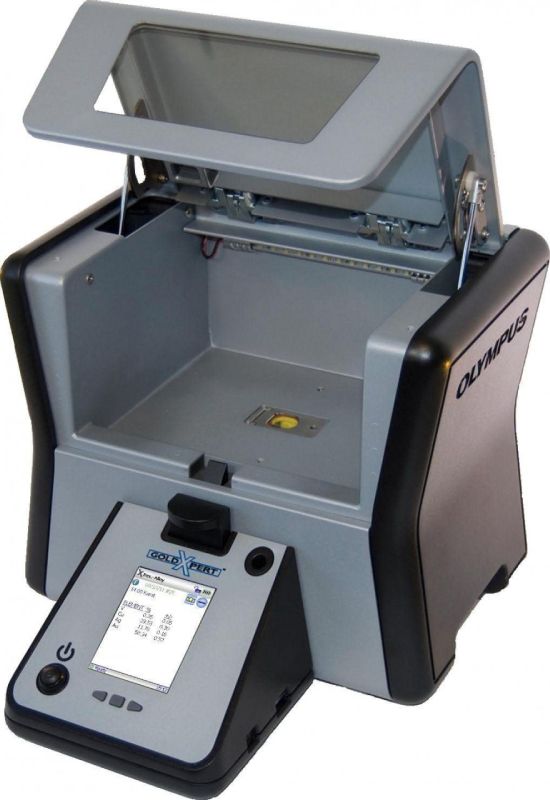

Olympus GoldXpert XRF Analyzer
Portable Countertop GoldXpert XRF Analyzer
The GoldXpert is a stylish countertop analyzer fit for the consumer showroom environment. Designed to be compact and lightweight, weighing only 22 lbs (10kg), the GoldXpert can be transported easily to wherever testing is needed. The GoldXpert gives accurate chemistry and karat results within seconds.
The GoldXpert XRF analyzer is an easy-to‑use, cost-effective method to obtain alloy chemistry and karat classification with one nondestructive and nonintrusive test. Additionally, an exclusive GoldXpert software feature helps identify gold-plated objects and sends an alert to the screen.
With the GoldXpert XRF Analyzer:
– Price cash-for-gold pieces quickly and accurately
– Identify and characterize a wide range of alloys including silver, platinum, and others
– Identify poison elements in samples
– Manage quality control of refining and melting operations
– Be alert to possible gold plating
The Olympus GoldXpert XRF analyzer is ideal for pawn shops, cash-for-gold operations, the jewelry industry, museums, archaeological sites, coin collectors, scrap recycling, and more.
Features and Benefits:
– Powerful 4 W X-ray tube provides reliable and accurate analytical performance.
– Speed: Delivers fast results within seconds.
– Portability: Can be powered by a compact battery for on-the-road analysis.
– Easy and accurate measurement automatically adjusts for the shape and size of the sample.
– Automatic karat determination.
– Large data storage capacity for test archiving.
– Easy data export and reporting for immediate certification generation.
– Integrated camera and small spot collimation for focused analysis and sample image archiving
– Completely nondestructive testing method.
– Innovative feature to help identify gold-plated objects
Typical Applications Olympus GoldXpert XRF Analyzer:
– On-the-spot gold karat classification, 0-24 kt.
– Identification of impurities.
– Accurate compositional analysis of platinum, silver, and other precious alloys.
– Verification of gold content in scrap metal.
– Determination of gold and silver content in coinage.
– Identifies and analyzes unknown metals for pricing, or even lead screening.
– Gold plating identification
Specifications Olympus GoldXpert XRF Analyzer:
– Weighing in at only 22 lb (10 kg)
– Operates completely independent of a PC
– Leaded-glass viewing window for easy viewing of a sample in the chamber
– Integrated camera indicating sample analysis points
– Safe, closed-beam XRF system
– Small spot collimation for analysis; ability to switch between 3 mm and 10 mm diameter spots with a simple tap on the touch screen
– 4 W X-ray tube, 200 µA current (max), plus optimized beam settings for accurate analysis
– Small desktop footprint: 267 mm x 310 mm x 340 mm
(10.5 in. x 12.2 in. x 13.4 in.)
(with door closed)
– LED-lit sample chamber: 125 mm x 210 mm x 180 mm
(4.9 in. x 8.2 in. x 7.0 in.)
– Analysis indicator light with 360° visibility
– Portable operation with optional battery for mobile off-site use
– USB interface port for high-speed data export, printing, external keyboard and remote control
– Responsive, bright, color touch screen display
– Silicon PIN Detector system standard. Silicon Drift
– Detector system available for optimized precision on trace elements
– Precious Metals Cr, Mn, Fe, Co, Ni, Cu, Zn, Ir, Pt, Au, Rh, Ru, Pb, Bi, Zr, Pd, Ag, Sn, Sb, Cd, In, Ga, Ge, and W. (Plus Os for SDD)
Package Olympus GoldXpert XRF Analyzer includes:
– GoldXpert unit
– Collimator Test Coin
– Sample Holder Clip with Articulating Arm
– USB cable
– 316 Stainless Steel Calibration Check Reference Coin
– Ten (10) spare windows
– Three (3) styluses
– Factory Authorized Training and Support
